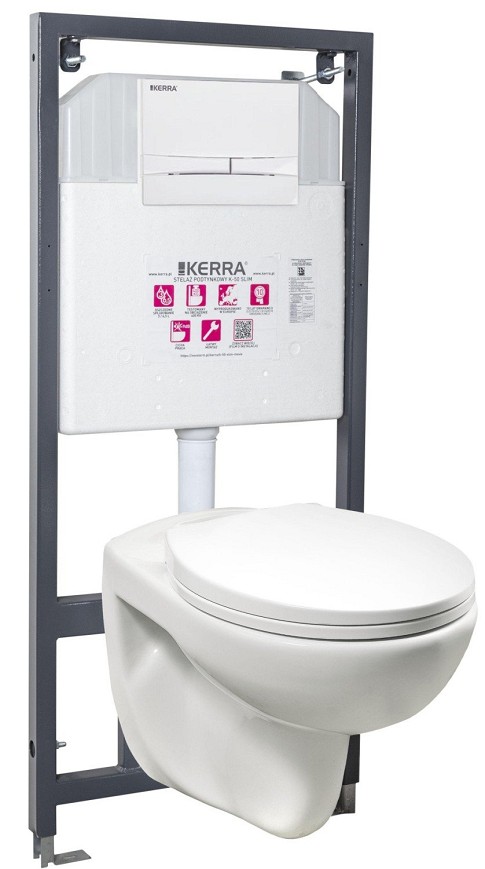

Doris Adriatic WH wall-mounted toilet cistern set

Technical data of the frame and the tank:

• Frame dimensions


  • height: 115-139 cm
  • width: 52.5 cm
  • depth: max 17.5-10 cm



  • Tank dimensions


    • height: 46 cm
    • width: 33 cm
    • depth: 8 cm (total depth including the frame 10 cm)
    • Depth of mounting holes: 18cm and 23cm



    • Equipment


    • polystyrene form for assembly
    • mounting screws for wall and floor mounting
    • water and drainage pipes
    • assembly kit for wall-hung toilet



    • Doris WC technical data


      • White color
      • Material: sanitary ceramics
      • Bowl height: 40.5 cm
      • Bowl width:  35.5 cm
      • Bowl depth: 54.5 cm
      • Wall-hung installation
      • The toilet bowl has a rimless KERRA PRO CLEANflush system, which ensures easy cleaning.



    OTHER TECHNICAL INFORMATION

    • Completely pre-assembled
    • Water tank capacity max 10 L
    • Mechanical dual flush 3/6.5 L
    • Water supply connection top right G 1/2 plug
    • Acoustic class (class 1) EN 14124 suction valve
    • Water flow pressure 0.3 MPa (3 bar) / Max noise intensity: 9.0 dB, Flow rate: 9 L / min
    • Impact copolymer special PP body (High impact resistance and heat resistance)
    • Body covered with polystyrene insulation for better acoustics and prevention of condensation
    • Powder-coated, tube profile thick (30mmx40mm) metal frame.
    • The toilet hanging bars have a load capacity of up to 400 kg. (adjustable to 18 or 23 cm).



    COMPATIBILITY STANDARD
    • EN 14055 CL 1 - 7 - NL I - VR II
    • Can be installed in plasterboard walls and brick walls.



    The set includes: 1 pc hidden mounting frame with tank, 1 pc Doris toilet bowl, 1 pc Doris toilet seat (polypropylene, soft-close), 1 pc double pressure plate (white)
